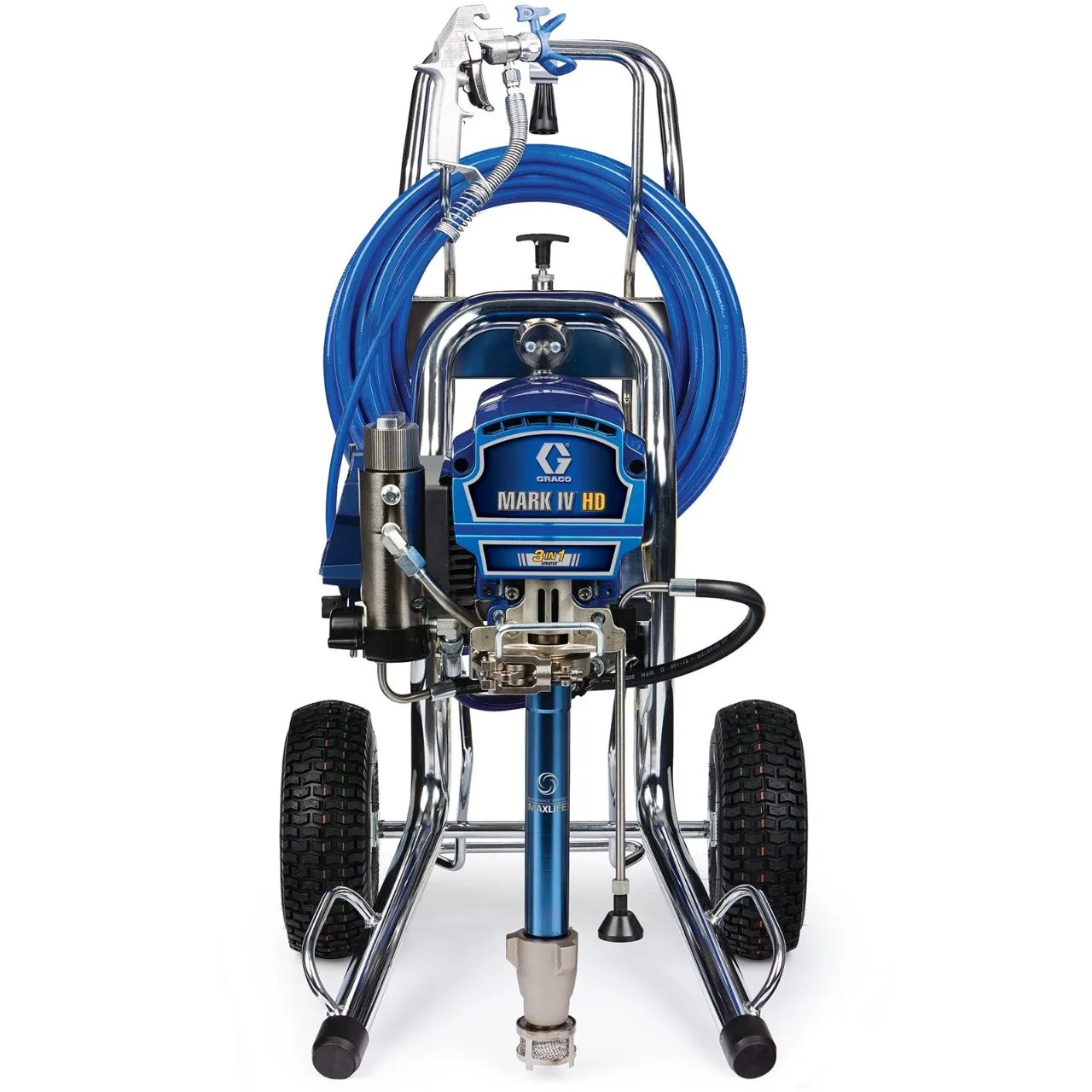

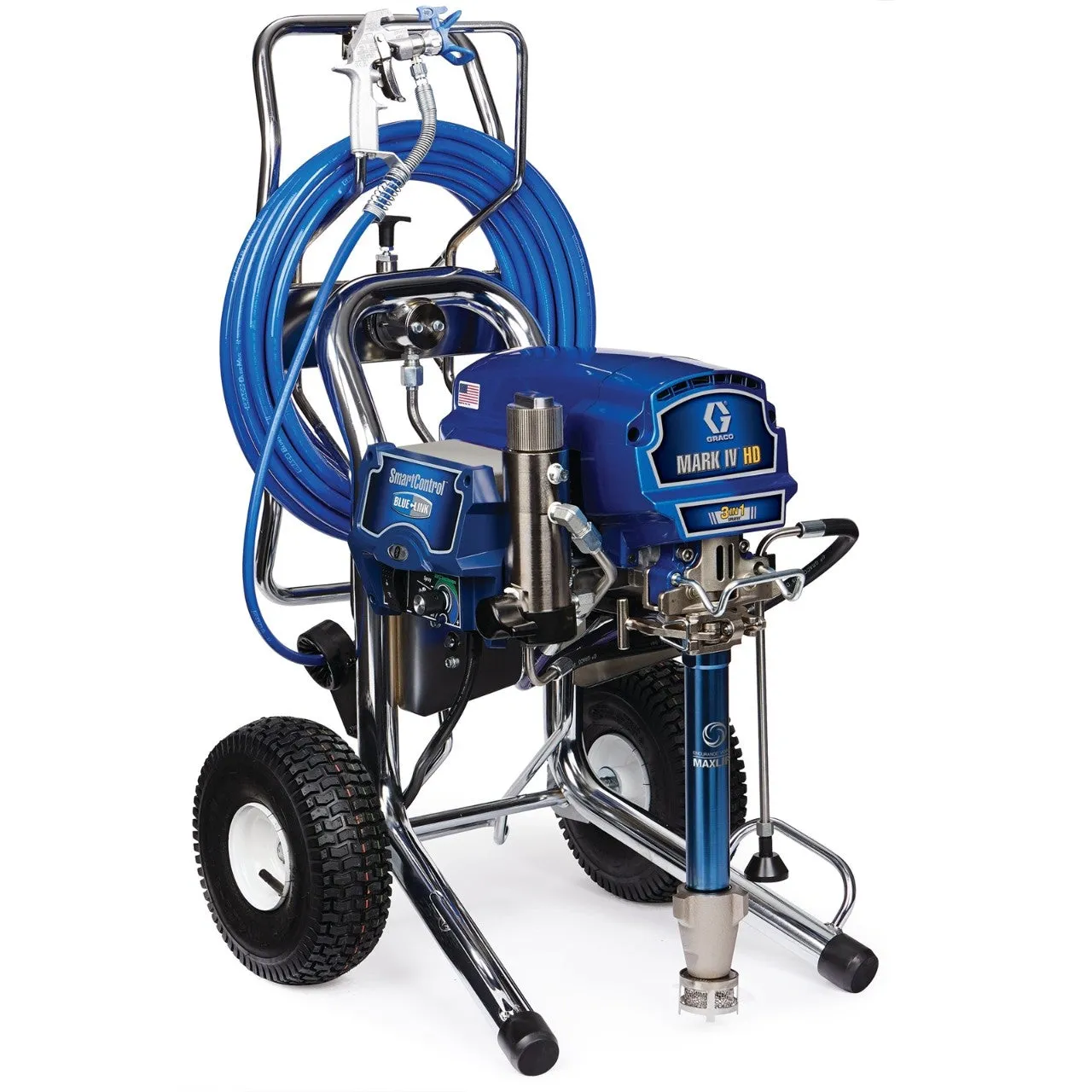

The Mark IV HD is designed to save time and money by allowing you to spray more square footage in a day. Built for serious professional contractors, this unit includes must-have features to increase your productivity with all texture finishes, including the wide range of primers and paint.
Features
Work Smarter, Finish More Jobs. Mark HD ProContractor Series electric airless texture sprayers are designed to deliver speed & performance so you can get to the next jobsite faster and increase your profits.
- Endurance Vortex MaxLife Piston Pump
- Superior pump life
- Breakthrough vortex rotating rod technology
- Lasts 6X longer between repacks with innovative MaxLife technology
- Oversized passages for high velocity flow to rotate piston for even wear Longest life packings and piston rod Long life ceramic and stainless steel balls included for maximum versatility
- MaxFlo 2 with Pack-Out Protection
- Less pack-out, more productivity
- Self-cleaning Vibra-Seal Technology eliminates material build-up
- Continuous spraying with True Pack-Out Protection for more productivity
- Optimized fluid passageways for the heaviest coatings
- BlueLink Job & Sprayer Management System
- Streamline your business
- Track every sprayer: Exact location & hourly productivity
- Know job progress: On demand productivity facts and reporting from anywhere
- Maximize uptime: Set maintenance schedules, alerts, & jobsite notes
- SmartControl 4.0 with ProGuard Protection System
- Precision Pressure Control
- Lowest dead band at any pressure delivers a consistent spray fan without pressure fluctuation
- ProGuard prevents electrical damage from extreme jobsite power conditions
- WatchDog Pump Protection System automatically prevents pump damage if material supply is too low
- QuikReel Hose Management System
- Easy hose management
- Deploy and rewind up to 300 feet (90 meters) of hose in seconds
- No twisting, kinking, and coiling
- Use only the hose you need — the rest stays on the reel
- ProConnect 2 Pump Replacement System
- Eliminate costly downtime
- Exchange pump in minutes
- No tools, pins or parts to lose
- FastFlush 2 System
- Fast cleaning now even FASTER
- Clean the pump 6X faster using ½ the water
- High-velocity fluid flow delivered with 60% higher motor speed
- Crushproof Inlet Strainer
- Durable filtration
- Stands up to harsh impacts to maintain even flow through filter
- MaxPower Motor & Precision Advantage Drive
- Proven power and performance for all painting applications
- High-torque brushless design with a Lifetime Warranty
- The longest lasting drive
- Hardened steel gears provide extremely quiet operation and a lifetime warranty
- Additional Features:
- WatchDog Pump Protection System
- Easy Out Filter Manifold
- Heavy-Duty Prime Valve
- Rugged, Durable Cart Design with Kickstand
Product Manuals
Warranty
Technical Specifications
| Amperage (A) | 15 |
|---|---|
| Compatible Replacement Pump | 17H832 |
| Convertible | Non-Convertible |
| Engine Size (HP) | 2.2 |
| Features | Endurance Vortex MaxLife Pump, MaxFlo 2, BlueLink System, SmartControl 4.0, QuikReel, ProConnect 2, FastFlush 2, Crushproof Inlet Strainer, MaxPower Brushless, Advantage Drive, WatchDog, Easy Out Filter, Heavy-Duty Prime Valve |
| Fluid Outlet Size (in) | 3/8 |
| Fluid Outlet Thread Type | NPSM |
| Frame Configuration | Hi-Boy |
| Frequency (Hz) | 50/60 |
| Hose Reel Type | QuikReel |
| Includes | FlexPlus Gun, RAC X LTX 425 Spray Tip, RAC X Guard, 3/8 in x 50 ft BlueMax II Airless Hose, 1/4 in x 3 ft BlueMax II Airless Whip Hose |
| Maximum Flow Rate (GPM) | 1.1 |
| Maximum Sound Pressure Level (dB(A)) | 82 |
| Maximum Tip Size (in) | 0.033 |
| Maximum Tip Size 1 Gun (in) | 0.033 |
| Maximum Working Pressure (MPa) | 22.8 |
| Maximum Working Pressure (psi) | 3300 |
| Minimum Generator Power (W) | 5000 |
| Model | Mark HD |
| Motor Type | MaxPower |
| Number of Guns | 1 |
| Overall Height (in) | 39 |
| Overall Length (in) | 29.5 |
| Overall Width (in) | 22.5 |
| Power Rating (HP) | 2.2 |
| Power Rating (W) | 1640.5 |
| Power Rating (kW) | 1.64 |
| Power Source | Electric |
| Pressure Control Type | SmartControl 4.0 |
| Pump Mount Type | ProConnect 2 |
| Pump Rod Type | MaxLife |
| Pump Sleeve Material | MaxLife |
| Recommended Annual Usage | 100-200 gallons per week |
| Series | IV |
| Type | Airless Sprayer |
| Volume Per Cycle (cycles/gal) | 195 |
| Weight (lb) | 119 |
| Wetted Material | Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel, Nylon, Stainless Steel, PTFE, Acetal, Leather, UHMWPE, Aluminum, Tungsten Carbide, PEEK, Brass |
